1
(포항)압연설비 전강 EX-ELECTRIC HEATER (1DNL)
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
TUBE SHEET (BL.RF) |
CABLE ENTRY(MAIN POWER) |
REMARKS |
| 1 |
HK23-035-01 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 24kW |
4"xANSI #150 |
PF 1"(28C) |
No.3 DEMI WATER |
| 2 |
HK23-035-02 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 21kW |
4"xANSI #150 |
PF 1-1/2"(42C)-28C Reducer |
No.3 HN GAS |
| 3 |
HK23-035-03 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 6.5kW |
2-1/2" SOCKET(NPT) |
PF1"(28C)-16C(EXR) |
RDS DEMI WATER |
| 4 |
HK23-035-04 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 12kW |
2-1/2" SOCKET(NPT) |
PF 1"(28C)-22C Reducer |
No.1,2 DEMI WATER |
| 5 |
HK23-035-05 |
EX-ELECTRIC HEATER (SUN65C) |
440V,Φ3,60Hz, 6.5kW |
2-1/2" SOCKET(NPT) |
PF3/4"(22C) |
RDS HUMIDIFIER DEMI WATER |
| 6 |
HK23-035-06 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 24kW |
4"xANSI #150 |
PF 1"(28C) |
RDS HN PRE HEATER |
| 7 |
HK23-035-07 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 15kW |
80AxKS10K |
PF 1"(28C) |
RDS MAIN HEATER |
2
(포항)압연설비 전강 EX-ELECTRIC HEATER (2DNL)
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
TUBE SHEET (BL.RF) |
CABLE ENTRY(MAIN POWER) |
REMARKS |
| 1 |
HK23-035-11 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 25kW |
4"xANSI #150 |
PF 1-1/2"(42C) |
No.1,2 HN GAS |
| 2 |
HK23-035-12 |
EX-ELECTRIC HEATER (SUN50) |
440V,Φ3,60Hz, 30kW |
150AxKS10K |
PF 1"(28C) |
No.0 HUMIDIFIER |
| 3 |
HK23-035-13 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 18kW |
125Ax5K |
PF 1"(28C)-22 Reducer |
No.1,2 HUMIDIFIER |
| 4 |
HK23-035-14 |
EX-ELECTRIC HEATER (SUN30) |
440V,Φ3,60Hz, 15kW |
100A x KS 10K |
PF 1"(28C) |
No.1,2 DEMI WATER |
| 5 |
HK23-035-15 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 15kW |
80A x KS 10K |
PF 1"(28C) |
No.3 HUMIDIFIER |
| 6 |
HK23-035-16 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 6kW |
4"xANSI #150 |
PF 1"(28C) |
No.3 HN GAS |
| 7 |
HK23-035-17 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 7.5kW |
2-1/2" SOCKET(NPT) |
PF1"(28C)-16C(EXR) |
No.3 DEMI WATER |
| 8 |
HK23-035-18 |
EX-ELECTRIC HEATER (SUN30) |
480V,Φ3,60Hz, 12kW |
4"xANSI #150 |
PF 1"(28C) |
No.0 HN GAS |
| 9 |
HK23-035-19 |
EX-ELECTRIC HEATER (SUN50) |
440V,Φ3,60Hz, 12kW |
150AxKS10K |
PF 1"(36C)-28 Reducer |
No.0 DEMI WATER |
3
(포항)압연설비 전강 ELECTRIC HEATER (2DNL)
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
TUBE SHEET (BL.RF) |
CABLE ENTRY(MAIN POWER) |
REMARKS |
| 1 |
HK24-021-01 |
ELECTRIC HEATER |
110V, Φ1, 0.32KW |
80AxKS 5K |
Zn SG22C |
판후렌지형 |
4
(광양) NO.2 CRM PLANT COOLING SECTION
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
REMARKS |
| 2 |
HK24-009-01 |
RADIANT TUBE HEATER |
254V 30KW Φ120×3028L |
RCS 5 |
| 3 |
HK24-009-02 |
HEATER TUBE |
Φ146×7T×3075L |
RCS 5 |
| 4 |
HK24-010-01 |
RADIANT TUBE HEATER |
254V 30KW Φ120×2649.4L |
RCS 6 |
| 5 |
HK24-010-02 |
HEATER TUBE |
Φ146×7T×2680L |
RCS 6 |
5
(광양) 4냉연 2CAL OAS HEATER
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
REMARKS |
| 1 |
HK21-019A |
ELECTRIC RADIANT
TUBE HEATER |
242.5V, 30KW |
|
| 2 |
HK21-019B |
HEATER TUBE
HK (SCH-21) |
Φ194×8T×2880L |
|
6
(포항)3전강 3APL ESS HEATER
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
REMARKS |
| 1 |
HK21-035A |
STRIP HEATER |
242.5V 59KW |
AF 30W×2.5T |
| 2 |
HK21-035C |
STRIP HEATER |
242.5V 59KW |
AF 30W×2.5T |
| 3 |
HK21-035B |
STRIP HEATER |
242.5V 70KW |
AF 30W×3.0T |
| 4 |
HK21-035D |
STRIP HEATER |
242.5V 70KW |
AF 30W×3.0T |
| 5 |
HK21-035E |
HANGER PIN SET |
Φ9×390L |
FeCr 1300℃ |
| 6 |
HK21-035F |
TERMINAL SET |
Φ20×380L |
STS310 |
7
(광양) 산소 12PLANT 흡착기 HEATER
| NO |
MODEL NO |
DESCRIPTION |
SPECIFICATION |
REMARKS |
| 1 |
HK11-118-C07A |
RADIANT HEATER |
88.5V, 14.7KW |
|
| 2 |
HK11-118-C07C |
RADIANT TUBE |
Φ84 X 3T X 1780L |
|
8

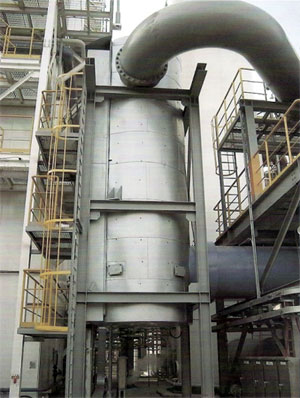

AIR & GAS HEATING PRE HEATER
| NO
| MODEL NO
| 히팅용량
| 전기용량-ZONE
| 비고
|
| 1 |
HK-AGH-1000 |
250㎥ / min-250℃ |
1000KW HR-3ZONE |
Mol-Sieve Bed 재생용
M/S Heater
흡착기 HeaterGas(질소) Heating Furnaces |
| 2 |
HK-AGH-1250 |
350㎥ / min-250℃ |
1250KW HR-3ZONE |
| 3 |
HK-AGH-1500 |
450㎥ / min-250℃ |
1500KW HR-3ZONE |
| 4 |
HK-AGH-1750 |
550㎥ / min-250℃ |
1750KW HR-4ZONE |
| 5 |
HK-AGH-2000 |
600㎥ / min-250℃ |
2000KW HR-4ZONE |
| 6 |
HK-AGH-2250 |
650㎥ / min-250℃ |
2250KW HR-4ZONE |
| 7 |
HK-AGH-2500 |
750㎥ / min-250℃ |
2500KW HR-4ZONE |
| 8 |
HK-AGH-2750 |
850㎥ / min-250℃ |
2750KW HR-4ZONE |
| 9 |
HK-AGH-3000 |
950㎥ / min-250℃ |
3000KW HR-4ZONE |
9
(광양) IMMERSION HEATER
| NO |
MODEL NO |
DISCRIPTION |
SEPCIFICATION |
REMARKS |
| 1 |
HK12-020-IM01 |
IMMERSION HEATER |
440V, 3Φ, 15KW |
|
| 2 |
HK12-020-IM02 |
IMMERSION HEATER |
440V, 3Φ, 21KW |
|
| 3 |
HK12-020-IM03 |
IMMERSION HEATER |
440V, 3Φ, 21KW |
|
10
(포항) PGL SINK ROLL PRE HEATER
| NO |
MODEL NO |
DISCRIPTION |
SEPCIFICATION |
REMARKS |
| 1 |
HK-101-M33-3200 |
ELECTRIC RADIANT
TUBE HEATER |
110V 20.9KW 160Φ×1600L |
PGL 1,2,3ZONE |
| 2 |
HK-101-M33-3204 |
HEATER TUBE |
179Φ×4T×1500L |
PGL 1,2,3ZONE |
11
(광양) PGL SINK ROLL 예열장치용 HEATER
| NO |
MODEL NO |
DISCRIPTION |
SEPCIFICATION |
REMARKS |
| 1 |
HK-08-002-04 |
ELECTRIC RADIANT
TUBE HEATER |
88V 20KW 160Φ x 1400L |
5CGL 1,2,3ZONE |
| 2 |
HK-08-002-05 |
HEATER TUBE |
179Φ x 4T x 1300L |
5CGL 1,2,3ZONE |
| 3 |
HK-08-002-06 |
ELECTRIC RADIANT
TUBE HEATER |
88V 10KW 160Φ x 1000L |
5CGL 1,2ZONE |
| 4 |
HK-08-002-07 |
HEATER TUBE |
179Φ x 4T x 900L |
5CGL 1,2ZONE |
| 5 |
HK-08-003-05 |
ELECTRIC RADIANT
TUBE HEATER |
88V 20KW 160Φ x 1400L |
6CGL 1,2,3ZONE |
| 6 |
HK-08-003-06 |
HEATER TUBE |
179Φ x 4T x 1300L |
6CGL 1,2,3ZONE |
| 7 |
HK-101-M33-1400 |
ELECTRIC RADIANT
TUBE HEATER |
88V 20KW 160Φ×1350L |
1CGL 1,2ZONE |
| 8 |
HK-101-M33-1404 |
HEATER TUBE |
179Φ×4T×1250L |
1CGL 1,2ZONE |
| 9 |
HK-101-M33-3200 |
ELECTRIC RADIANT
TUBE HEATER |
88V 20.9KW 160Φ×1600L |
3CGL 1ZONE |
| 10 |
HK-101-M33-3204 |
HEATER TUBE |
179Φ×4T×1500L |
3CGL 1ZONE |
| 11 |
HK-18-017-01 |
ELECTRIC RADIANT
TUBE HEATER |
127V 10.5KW 120Χ1920L |
2CGL |
| 12 |
HK-18-017-02 |
HEATER TUBE |
140Φ×4T×1990L |
2CGL |
12
ELECTRIC AIR HEATER
| NO |
MODEL NO |
DISCRIPTION |
SEPCIFICATION |
REMARKS |
| 1 |
HK24-005-01 |
ELECTRIC AIR HEATER |
220V, 1100W |
EIC |
13

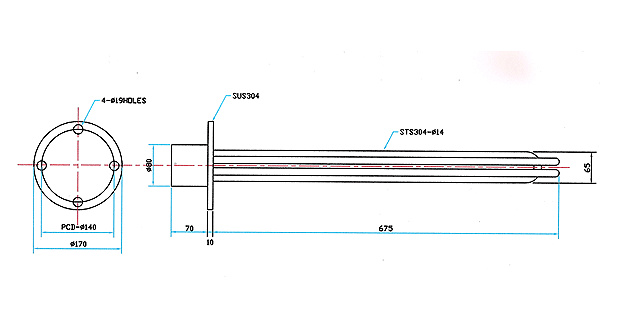

ELECTRIC HEATER
14
ELECTRIC HEATER
15
ELECTRIC HEATER
16

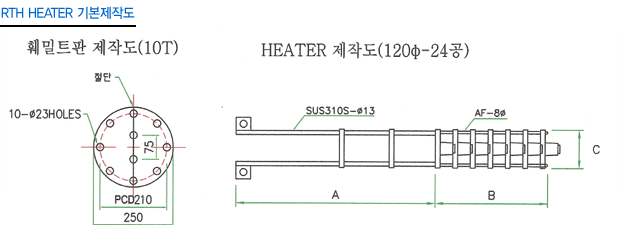

ELECTRIC R/T HEATER
| NO |
MODEL NO |
제 작 치 수 |
전압(E) |
용량(W) |
DRAWING NO |
| A |
B |
C |
| 1 |
RTH-07031 |
705 |
400 |
120 |
36V/440V |
5KW |
HK-07-031-1 |
| 2 |
RTH-07032 |
705 |
600 |
120 |
52V/440V |
7.5KW |
HK-07-031-2 |
| 3 |
RTH-07033 |
705 |
820 |
120 |
72V/440V |
10KW |
HK-07-031-3 |
| 4 |
RTH-07034 |
705 |
1000 |
120 |
95V/440V |
12.5KW |
HK-07-031-4 |
17

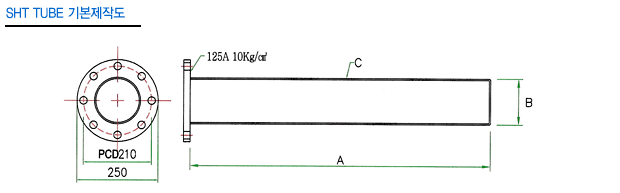

HEATER TUBE (INCONEL 600 + SS275 FLANGE)
| NO |
MODEL NO |
제 작 치 수 |
FLANGE |
DRAWING NO |
| A |
B |
C |
| 1 |
SHT-22022 |
985 |
139.8 |
4.0 |
125A 10Kg/㎠ |
HK-22-022-1 |
18
SHEATH HEATER
| NO |
MODEL NO |
제 작 치 수 |
전압(E)
| 용량(W)
| DRAWING NO |
| A |
B |
C |
| 1 |
HK-FH-001 |
1,280 |
1,230 |
1,130 |
220/440 |
1,650W |
HK-07-245 |
| 2 |
HK-FH-002 |
1,580 |
1,530 |
1,230 |
220/440 |
1,820W |
HK-07-245-1 |
| 3 |
HK-FH-003 |
2,080 |
2,030 |
1,930 |
220/440 |
2,700W |
HK-07-245-2 |
| 4 |
HK-FH-004 |
2,380 |
2,330 |
2,230 |
220/440 |
3,100W |
HK-07-245-3 |
| 5 |
HK-FH-005 |
2,680 |
2,630 |
2,530 |
220/440 |
3,500W |
HK-07-245-4 |
19
GLOW HEATER
| NO |
MODEL NO |
CODE NO |
| 1 |
HK-GL-08157 |
Q2200525 |
20

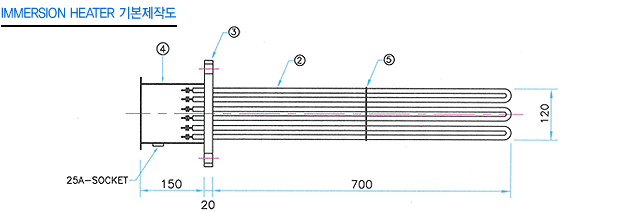

IMMERSION HEATER
21
BOLTNUT HEATING HEATER
| NO |
MODEL NO |
제 작 치 수 |
전압(E)
| 용 량
| DRAWING NO |
| A |
B |
C |
| 1 |
BHH-08133 |
110 |
100 |
340 |
220V/440V |
3.0KW |
HK-08-183 |
| 2 |
BHH-08134 |
110 |
100 |
450 |
220V/440V |
4.0KW |
HK-08-183 |
| 3 |
BHH-08135 |
110 |
150 |
550 |
220V/440V |
5.0KW |
HK-08-183 |
